| Tissue Array |
| MTABooster® : An efficient solution to automate your tissue arrayer |
|
Tissue Array ...
Tissue array is a technique that allows to deposit on one single slide many hundreds of tissue sections. It is a verypowerful tool to explore tissues to discover and to validate new therapeutic markers identified by molecular methods such as DNA chips, mass spec, Q-PCR, laser microdissection.
Tissue array allows tscreening large numbers of patients. Studies are far more statistically significant. Tissue array is also a very economical tool by reducing consumption of precious tissue specimens and reagents |
Opening new possibilities with MTABooster ®
Making tissue arrays is a time-consuming task when using manual arrayers when you are strongly commited into routine work. It is also very susceptible to human errors. Thousands of tissue specimens cannot be exploited whereas constituting an incredibly rich source of information for diagnostic and therapeutic research. ALPHELYS has designed a new technology that dramatically accelerates tissue array construction. It opens new opportunities to any pathology laboratories to exploit their precious tissue collections while not compromising on their routine tasks and duties. |
 |
|
| MTABooster ® and TMADesigner ®
MTABooster ® is a retrofit kit to any manual tissue arrayer of model 1 (MTA1) from Beecher Instruments Inc. It is based on two electronic motors that are installed in place of the manual micrometers. Positioning of the punches above the recipient blocks is automated and fast. The kit includes TMADesigner ® , a software developed by ALPHELYS. TMADesigner ® automates the design of your tissue arrays in minute time on your computer whatever the format or the size of your tissue arrays. |
|
Save on your time |
Control Key of MTABosster®
|
Design and build your tissue arrays in record times! Save time on your technicians, save time to do tissue arrays and exploit your rich and precious tissue bank into rapid discovery of new markers.
MTABooster ® positions rapidly the punches to the right predefined position for coring! MTABooster ® divides by 3 or 4 the time required to do a tissue array block . |
|
|

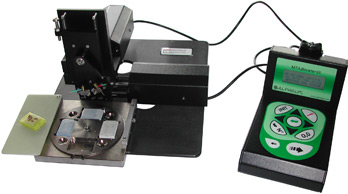

MTABooster ® Control Keyboard
|
|
Guarantee the precision |
MTABooster ® allows construction of high precision high density tissue arrays |
Let electronic do the job of positioning the punches for you. Repeatedly, reproducibly, MTABooster ® will automatically and accurately place the punches at pre-programmed positions. Your tissue arrays will gain in precision and regularity. This will strongly facilitate microscope interpretation of your tissue array spots . |
|
|
Create errors-free tissue arrays
TMADesigner ® automatically programs tissue arrays that are fully customized to your needs. You can adjust punch size, spot spacing, grid dimensions, number of spots, tissue types, number and positions of replicates.No more copy-paste into Excel, no mistakes due to re-typing: import directly your list of donor blocks IDs. TMADesigner ® allows prospective as well as retrospective tissue arrays construction. Patient data can be integrated the same automatic way into your tissue array program. The program is transferred to the MTABooster ® key to be directly read on MTABooster ® for the construction. The screen of the keyboard displays instructions to the operator: donor block ID to choose, tissue type to collect, recipient block ID to use, position ID
and coordinates of spot.
Operator is
|

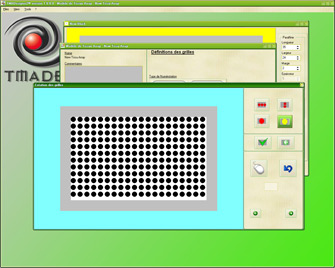

Typical Interface of TMADesigner® 2 |
relieved from paying permanent attention to its work, eliminating potential sources of errors like mix-up in donor blocks. Day, time and success of sample core transfer into recipient block are recorded to produce a report at end of construction. The report can be readily imported into Spot Browser ®.
ALPHELYS tissue array analyzer, for tissue array spots capture, annotations and automated image analysis
|
|
|
Tissue array construction on MTABooster ®
upgraded Beecher Instruments manual arrayer
at a major cancer research center
|
|
Gain comfort
No more micrometers to rotate. No more neck distortion to see the micrometer's display. No more worry about adjusting precisely the micrometer step. MTABooster ® does it automatically. by the simple press of a button ! |
|
Do it yourself or call for support |
| |

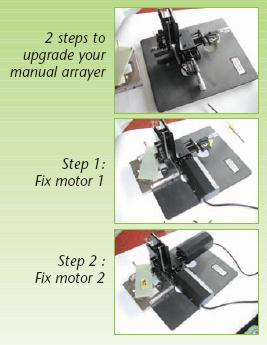

MTABooster ® can be installed in few minutes without special expertise. No modification of your manual tissue arrayer is required. The kit is supplied with all necessary tools for installation on site. You may otherwise require local support. We have distributors active in many countries, see our section on our web site to find contact details. You may also send your tissue arrayer to us with our carrier services: no worries, no troubles.
Just pack your tissue arrayer and send it back to us, you'll get it back in less than a week from any location round the world. At any time, the MTABooster ® kit can be removed from the instrument to return the tissue arrayer to its original state.
Can I upgrade my manual tissue arrayer ?
Any model MTA1 from Beecher Instruments Inc since 1999 until late 2005 is upgradeable. Ask for more recent versions of model MTA1. The kit is not compatible with Beecher Instruments Inc manual tissue arrayers model MTA2
. |
|
|
Proven track records
Thanks to a careful design, MTABooster ® is being used extensively on many Beecher tissue arrayers without reducing arrayers durability .
MTABooster ® is offered with a 1-year warranty. |
|
|
|
To order
MTABooster® Kit Upgrade Kit only
|
|
|
|
,
Ferme des Ebisoires, Impasse Paul Langevin, 78370 Plaisir - France
Tél +33 (0)1 30 07 52 95 - Fax +33 (0)1 30 07 51 56 - Email info@alphelys.com
